TOMOE 700Z = Body - Aluminum die cast alloy ADC12 Disc - SCS13(A351 CF8), SCS14(A351 CF8M), PPS(40~200mm) Stem - SUS420J2(AISI420) Seat ring – EPDM 3,4(Option:NBR)	TOMOE 700G, 704G, 705G = Body - Ductile Iron (FCD450) \| Cast Iron (FC250) [ 700G ] . - Ductile Iron (FCD450) [ 704G ] . - Ductile Iron (FCD450) \| Cast Iron (FC250) [ 705G ] Disc - Stainless Steel (SUS304/SUS316) \| Aluminum Bronze (JIS CAC702) \| PPS \| Nylon Coating Stem - SUS420 J2 \| SUS392 J1 Seat ring - EPDM \| NBR *(Optional - HI-EPDM \| FPM \| SEP \| CR \| White NBR)	TOMOE 700GB = Body - Ductile Iron JIS: FCD450 Disc - SCS13(A351 CF8)New Ribbed Disc Stem - SUS420J2(AISI420) Seat ring - NBR, EPDM※5,6,7	TOMOE 302A \| 303Q = Body - SCPH2/WCB, SCS 14A/CF8M [ 302A] . - SCPH2/WCB, SCS 13A/CF8, SCS 14A/CF8M [ 303Q ] Disc - 80mm to 150mm SCS 16A(hard chrome plating) [ 302A ] 200mm to 300mm SCS 14A(hard chrome plating) [ 302A ] . - 350mm to 600mm SCS 13A(hard chrome plating), SCS 14A(hard chrome plating) [ 303Q ] Stem - SUS 420J2, SUS 329J1, SUS 316, SUS 329J4L [ 302A ] . - SUS 420J2, SUS 304, SUS 630 [ 303Q] Seat ring - SUS316L

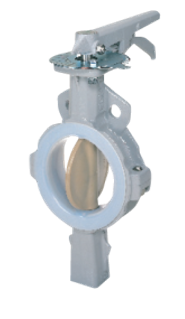

TOMOE 302Y \| 304Y = Body - FCD450 (Tufftride treated) OR SCS13A Disc - SCS13A (HdCr plating) Stem - SUS420J2 or SUS3291J1 Seat ring - SUS316 [ 302Y ] . - RPTFE (with carbon graphite) or the optional specification PFA + PTFE (white ) [ 304Y ]	TOMOE 304A \| 304Q = Body - SCPH2/WCB , SCS 14A/CF8M [ 304A ] . - SCPH 2/WCB , SCS 13A/CF8 [ 304Q ] Disc - SCS 13A/CF8 (Hard chrome plating) , SCS 16A/CF3M (Hard chrome plating) [ 304A ] . - SCS13A/CF8 (Hard chrome plating) [ 304Q ] Stem - SUS 420 J2 , SUS 329 J1 / SUS 316 L / SUS 329 J4 L [ 304A ] . - SUS 420 J2 / SUS 630 , SUS 304 (Under 1.0MPa) / SUS 630 (Over 1.0MPa) [ 304Q ] Seat ring - RPTFE as standard, White PTFE as an option	TOMOE 846T \| 847T = Body - Ductile iron, FCD-S (A395) Disc - 65 to 200mm: PFA/250, 300mm: PTFE (Backup rubber: Fluorocarbon rubber) [ 846T ] . - 50 to 200mm: SCS13(CF8) with PFA lining / 250, 300mm: SCS 13 (CF8) with PTFE lining [ 847T ] Stem - SUS329J1 [ 846T ] , 420J2SS [ 847T ] Seat ring - PFA (Backup rubber: Fluorocarbon rubber) [ 846T ] . - 50 to 200mm: PFA/250, 300mm: PTFE (Backup rubber: Fluorocarbon rubber) [ 847T ]	TOMOE New T-Dynamo = Air Supply Pressure - 0.4 to 0.7MPa Body shell max (MPa) - 1.05MPa Air connection (Rc) - Rc(PT)1/4 Ambient temperature - -10 to 60 degrees C

TOMOE NewELMY = Conduit connections - G 1/2 (PF 1/2)1 ports \| G 1/2 (PF 1/2) 2 ports Enclosure - JIS C 0920 (IP 65), Class 5, dust and water-jet proof type Storage temperature range - -20 to 80 degreesC Paint finish - Epoxy-melanin baked with Munsell 2.5 BG 6/12
